Orders API - Northbeam

The Northbeam Orders API is a customizable solution specific to your business.You will use this API to actively push order data to Northbeam by making POST requests to https://api.northbeam.io/v2/orders.Full API reference: /reference/post_orders-1.

Get API credentials

In your Northbeam dashboard go to Settings → API Keys
Click Create new API key to generate:
- Authorization (API Key)
- Data-Client-ID (Client ID)

Onboarding Flow: Add Orders > Other E-Commerce Platform

Header	Value	Description
`Authorization`	`<API_KEY>`	Your Northbeam API key
`Data-Client-ID`	`<CLIENT_ID>`	Your Northbeam client ID
`Content-Type`	`application/json`	Tells the API you’re sending JSON

Production endpoint: https://api.northbeam.io/v2/orders Example (cURL):

curl --request POST \
  --url https://api.northbeam.io/v2/orders \
  --header 'Authorization: <API_KEY>' \
  --header 'Data-Client-ID: <CLIENT_ID>' \
  --header 'Content-Type: application/json' \
  --data @orders.json

These headers are required for every request. Without them, the Orders API will reject your call.

Build your payload

All of these fields are required for full functionality in Northbeam. Full API reference: /reference/post_orders-1.

Field	Type	Description
`order_id`	string	Unique identifier for the order. Must match the `id` in firePurchaseEvent so we can pair website events with orders.
`customer_id`	string	Must be unique per customer in your OMS.
`customer_email`	string	The email associated with the customer.
`time_of_purchase`	date-time (ISO-8601)	Must be in ISO-8601 format. Must occur AFTER the frontend firePurchaseEvent. Include a timezone offset if not reporting in UTC. Example: FPE timestamp = `2025-09-29T15:30:00Z` ❌ `2025-09-29T15:00:00Z` (too early) ✅ `2025-09-29T15:31:00Z` (UTC) ✅ `2025-09-29T15:31:00-07:00` (with offset)
`currency`	string	ISO-4217 currency code (e.g., USD). All monetary fields assume this currency.
`purchase_total`	number	Total collected including tax, shipping, and fees.
`tax`	number	Amount paid as tax. Required if you want taxes deducted from revenue in reporting.
`shipping_cost`	number	Amount paid for shipping. Required if you want shipping deducted from revenue in reporting.
`products`	array of objects	Must contain at least one product. Required keys: `id` (string), `name` (string), `quantity` (number), `price` (number) Optional keys: `variant_id` (string), `variant_name` (string)
`order_tags`	array of strings	Required for offline orders. Used to mark subscription stage or exclude orders from attribution.
`refunds`	array of objects	Used to keep revenue calculations correct. Required keys: `product_id` (string), `quantity` (number), `refund_amount` (number), `refund_made_at` (date-time) If you want refunds broken out in reporting, you must also include an `order_tag`.
`customer_shipping_address`	object	Enables Customer LTV reporting by region and state. Required keys if included: `address1` (string), `address2` (string), `city` (string), `state` (string), `zip` (string), `country_code` (string)
`discount_codes`	array of strings	Enables Customer LTV by discount code.
`discount_amount`	number	Required if you want discounts broken out in dashboard reporting.

Example payload

[
  {
    "order_id": "abc-123",
    "customer_id": "def-456",
    "customer_email": "example@gmail.com",
    "time_of_purchase": "2025-09-29T15:31:00Z",
    "currency": "USD",
    "purchase_total": 110.99,
    "tax": 5.00,
    "shipping_cost": 10.99,
    "products": [
      {
        "id": "prod-1",
        "name": "Sample Product",
        "quantity": 1,
        "price": 95.00,
        "variant_id": "var-1",
        "variant_name": "Size M"
      }
    ],
    "order_tags": [
      "Online Order",
      "Subscription First"
    ],
    "refunds": [
      {
        "product_id": "prod-1",
        "quantity": 1,
        "refund_amount": 10.00,
        "refund_made_at": "2025-09-30T10:00:00Z"
      }
    ],
    "customer_shipping_address": {
      "address1": "123 Main St.",
      "address2": "Apt. 1A",
      "city": "San Francisco",
      "state": "CA",
      "zip": "94112",
      "country_code": "USA"
    },
    "discount_codes": [
      "WELCOME10"
    ],
    "discount_amount": 10.00
  }
]

Verify your payload

Before sending the orders, confirm your payload structure and values are valid. Most issues come from malformed payloads or missing fields. Common validation checks:

✅ order_id must be unique per order and match the id used in firePurchaseEvent.
✅ time_of_purchase must be AFTER the corresponding firePurchaseEvent timestamp and in proper ISO-8601 format with timezone offset.
✅ products array must include at least one product with id, name, quantity, and price.
✅ currency must be a valid ISO-4217 code (e.g., USD, EUR).
✅ customer_email must match the email on the actual order in your OMS (case-sensitive in some systems).
✅ customer_id accuracy is critical – this is what Northbeam uses to distinguish between new and returning customers. If it’s inconsistent (e.g., mixing Shopify IDs and internal IDs), customer LTV and new/returning logic will be incorrect.
✅ order_tags are required and used for two main purposes:
- Subscriptions – Use distinct tags to separate:
  1. First-time subscription orders (subscription starts)
  2. Recurring subscription renewals (auto-charges that happen in the backend)
- Offline Orders – Tag any orders not placed through your live production website (and therefore without frontend pixel events). Our team excludes these from diagnostics monitoring.
✅ refunds objects must include product_id, quantity, refund_amount, and refund_made_at.
✅ If including customer_shipping_address, all required subfields (address1, city, state, zip, country_code) must be present.

Order tags are very important for our data validation phase.We cross-check pixel events against raw order data. If tags are missing or incorrect and large discrepancies appear, we’ll need to investigate further — which can prolong the implementation process.

Common mistakes to avoid:

❌ Using inconsistent customer_ids (e.g., switching between Shopify and internal IDs)
❌ time_of_purchase set BEFORE the frontend pixel fire
❌ Untagged subscription orders, which prevents Subscription Analytics from working correctly
❌ Untagged offline orders, leading to large discrepancies in pixel vs. order data. This prolongs our data validation process.
❌ Missing products array or leaving it empty
❌ Currency not set as a valid ISO-4217 code (e.g., using “US Dollars” instead of USD)

Backfill historical orders

Backfilling your historical data is extremely important. This ensures your Customer LTV is complete. This is also key for accurate New and Returning Data.

Accurate New and Returning DataNorthbeam determines whether a customer is new or returning based on the customer_id attached to each order. Without historical orders, someone who purchased in the past but buys again today will be counted as a new customer — because their first order isn’t in the system.Backfilling ensures repeat customers are recognized correctly.

What to send

Send all historical orders you want in Northbeam (recommended: up to 5 years).
Use the same payload format from Build your payload.
Keep order_id stable; resending the same order_id overwrites the prior record.

How to send

Batch up to 1000 orders per request.
Backfill in time windows (for example, month by month).

Backfilling is only required for new onboards. If your historical orders already exist for any reason (e.g., transition from Shopify to the Orders API), this step isn’t needed.

Set up ongoing batches

After history is loaded, keep Northbeam up to date with regular batches. Cadence

Northbeam processes on your plan frequency, not in real time.
Send at least 2× more frequently than your plan’s processing cadence.
- Example: on a 4× per day plan, send 8× per day.

Batching

Up to 1000 orders per request.
Include new and changed orders since the last run.
Resend modified orders using the same order_id.

Operational notes

Retries: if a request fails, retry the same batch; using the same order_ids is safe.
Idempotency: the latest record for an order_id takes priority.

Implementation tip: most teams set this up as a scheduled job (e.g., cron, Airflow, or a serverless function like AWS Lambda).

Test in sandbox (optional)

Use the UAT endpoint to validate payloads before sending real data to production. Sandbox endpoint: https://api-uat.northbeam.io/v2/orders You can test without production keys by using these header values. Testing with your real keys also works, but the sandbox database is purged periodically, so treat it as a testing environment only.

--header 'Authorization: None'
--header 'Content-Type: application/json'
--header 'Data-Client-ID: test'

Sandbox testing notes

The sandbox does not save orders — it only checks that your payload is valid.
A “pass” response confirms the request structure is correct, but it does not validate the actual numbers.

For full validation of values (totals, tax, discounts, etc.), send test data to the production endpoint. We can remove those test orders for you afterward if needed.

Data diagnostics

Northbeam provides a diagnostics tool to help you monitor Orders API activity in production. If there are any issues with your API upserts, errors will appear here with details to help you debug. Common causes include malformed payloads or missing required fields.

Where to find it

In the Northbeam dashboard:

Go to Settings
Select Data Diagnostics (bottom of the left-hand column)

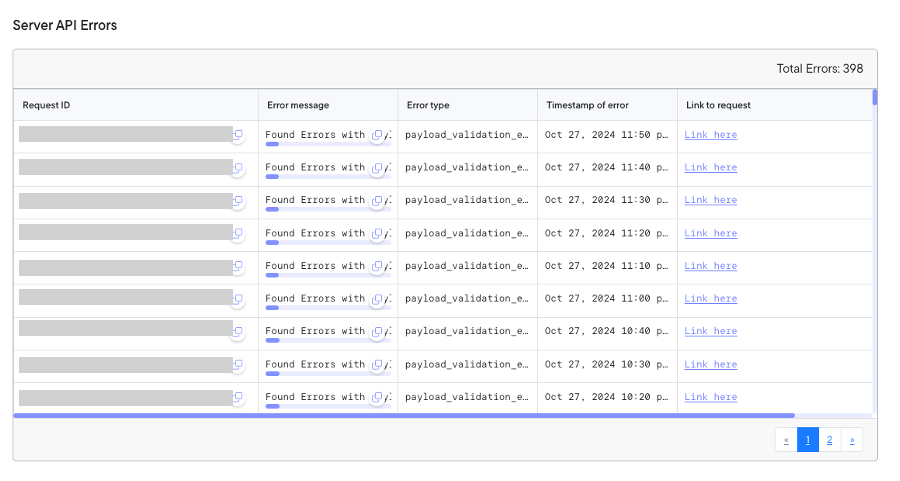

Error table

Each error entry includes:

Request ID
Error message
Error type (e.g., payload_validation_error)
Timestamp of error
Link to request for deeper inspection

Tip: most errors are due to missing required fields or invalid payload format. Fix the payload and resend with the same order_id — the latest record will take priority.

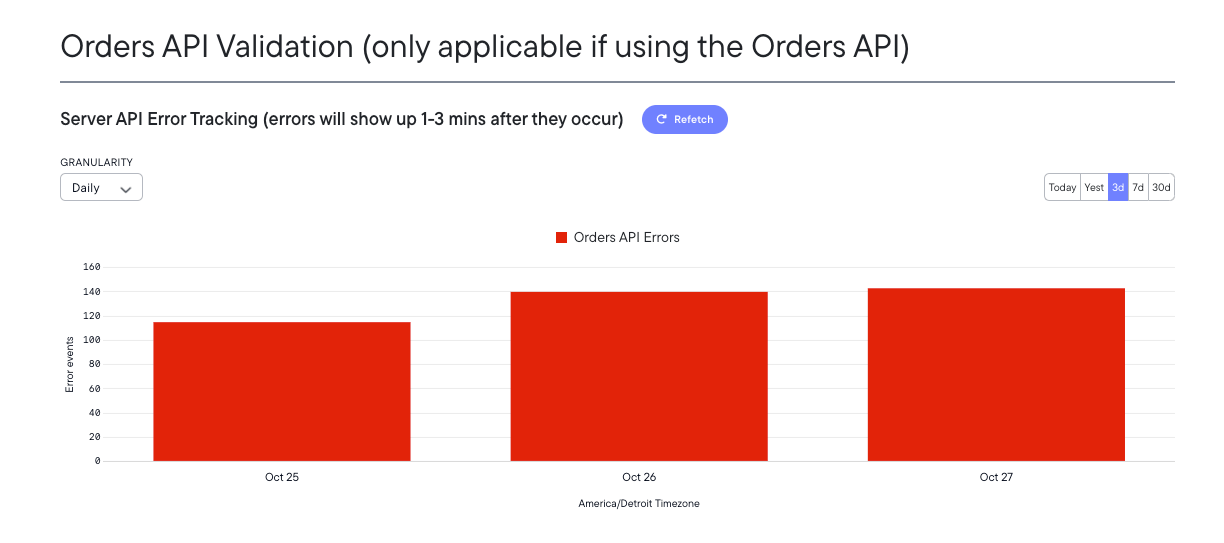

Error trends

A chart shows API error counts over time (1–30 day ranges available).
- Errors typically appear within 1–3 minutes after they occur.
  - Use this view to identify spikes or recurring issues.

Monitoring: this view is most helpful for spotting systemic issues (e.g., a bad deploy or recurring field mismatch) rather than one-off errors.
