When you’re done, Northbeam shows your Impact spend, visits, and attributed revenue on the same programs, partners, and ads.
Before you start, make sure you have:
  • A login to the Impact account (or accounts) you want to connect
  • Access to Impact Settings to edit the program tracking template

1. Connect the account

Sign in to Impact and pick the accounts to link.

2. Add Northbeam parameters

Add nbt once to your program tracking template.

3. Confirm tracking

Check that parameters and spend are reaching Northbeam.
1

Connect your Impact account

Northbeam connects to Impact with a sign-in through Impact. You don’t need to create API tokens or copy credentials.
  1. Open Connections and find the Impact card. If you’re still in onboarding, go to Integrations > Impact instead.
  2. Click Connect. You’re sent to Impact. Sign in if you’re asked to.
  3. When you’re sent back to Northbeam, your available Impact accounts are listed. Select every account you want connected to this Northbeam dashboard.
  4. Click Save. Your linked accounts are listed on the Impact card.

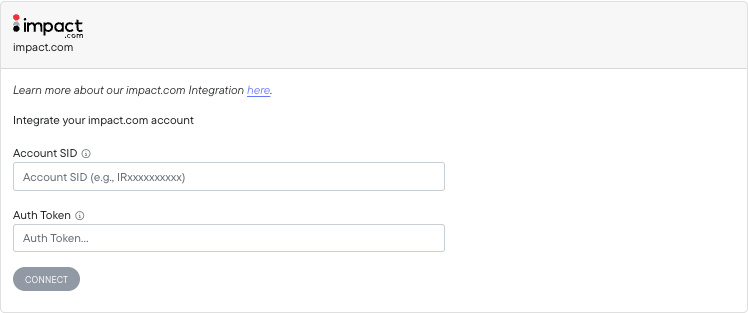

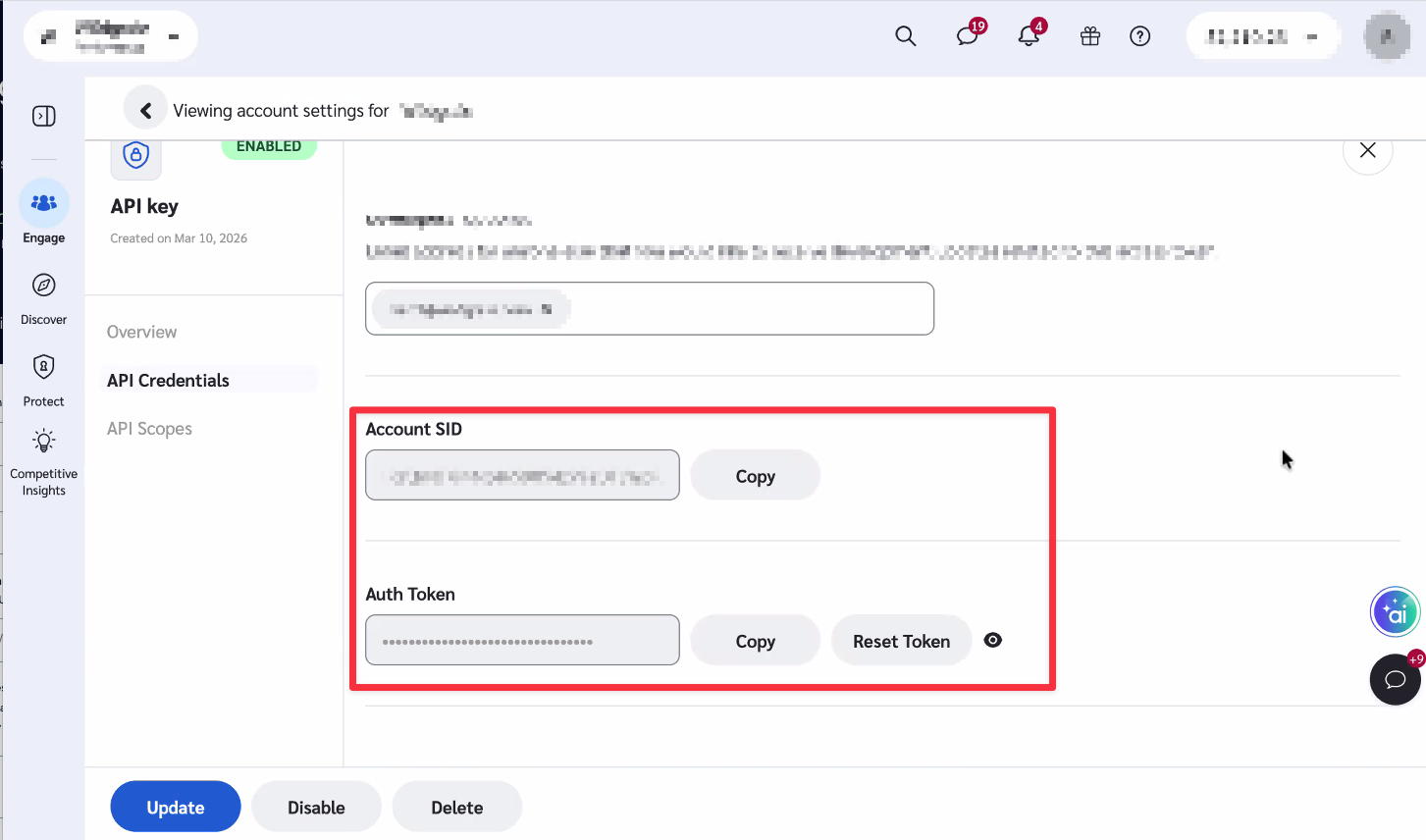

Already connected with an Account SID and Auth Token? Your connection keeps working, but we recommend switching to the new sign-in whenever it’s convenient. Follow the steps above. It only takes a minute.
After you connect, spend and other Impact data show up after the next data refresh, usually within a few hours. Recent data arrives first, and historical spend is backfilled within 24 hours.If you skip this step: campaign, partner, and ad names are missing, along with spend metrics.
2

Add Northbeam parameters to your ads

Add this parameter to the click URLs for all new and existing Impact ads:
  1. In Impact, go to [User profile] → Settings → Gateway.
  2. Under Program Tracking Template, add a new parameter row with Name nbt and Value nb:impact::{ircid}:{irpid}:{iradid}.
  3. Click Save.

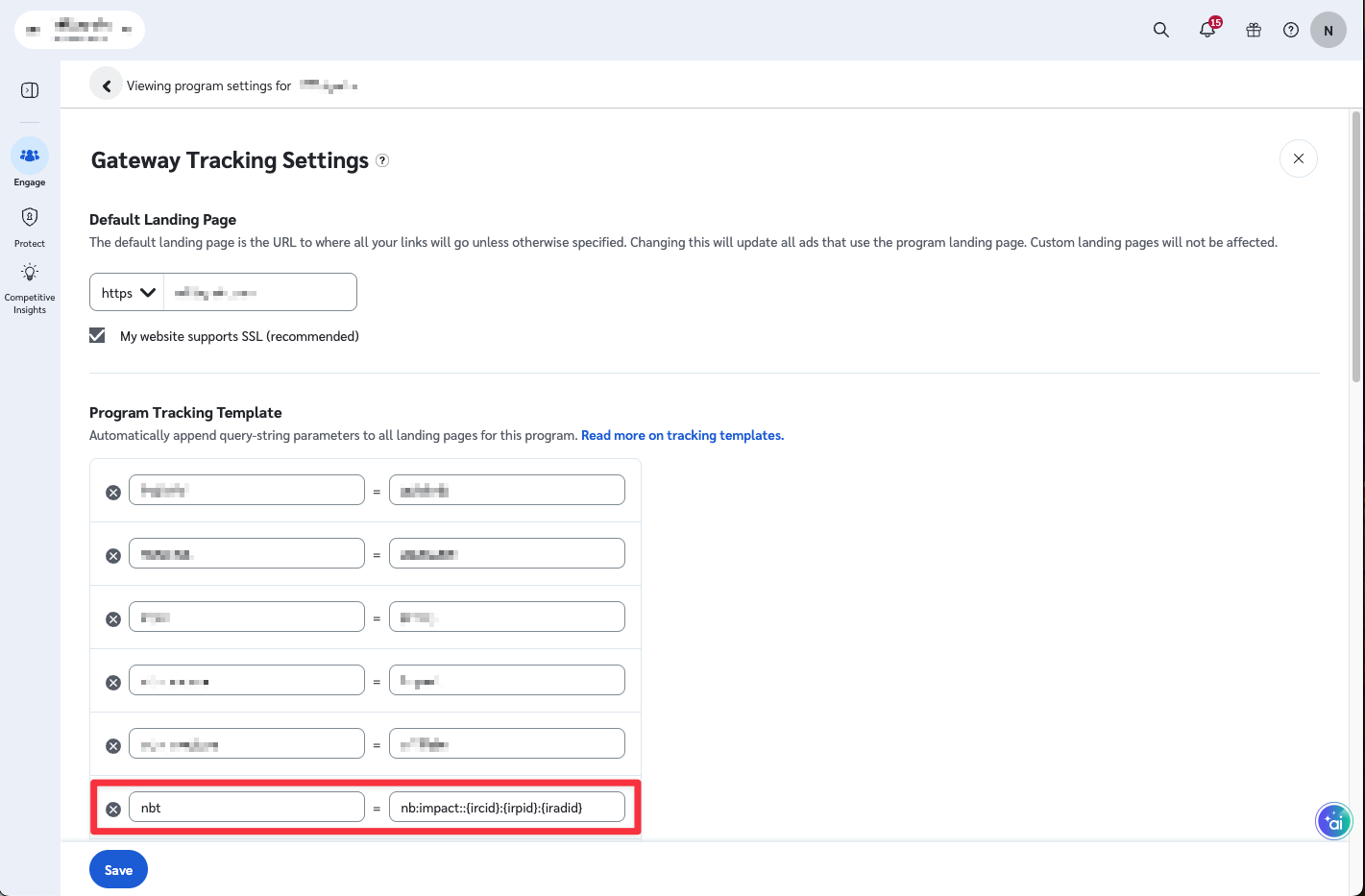

Impact Program Tracking Template with the nbt parameter row added

Settings > Gateway > Program Tracking Template

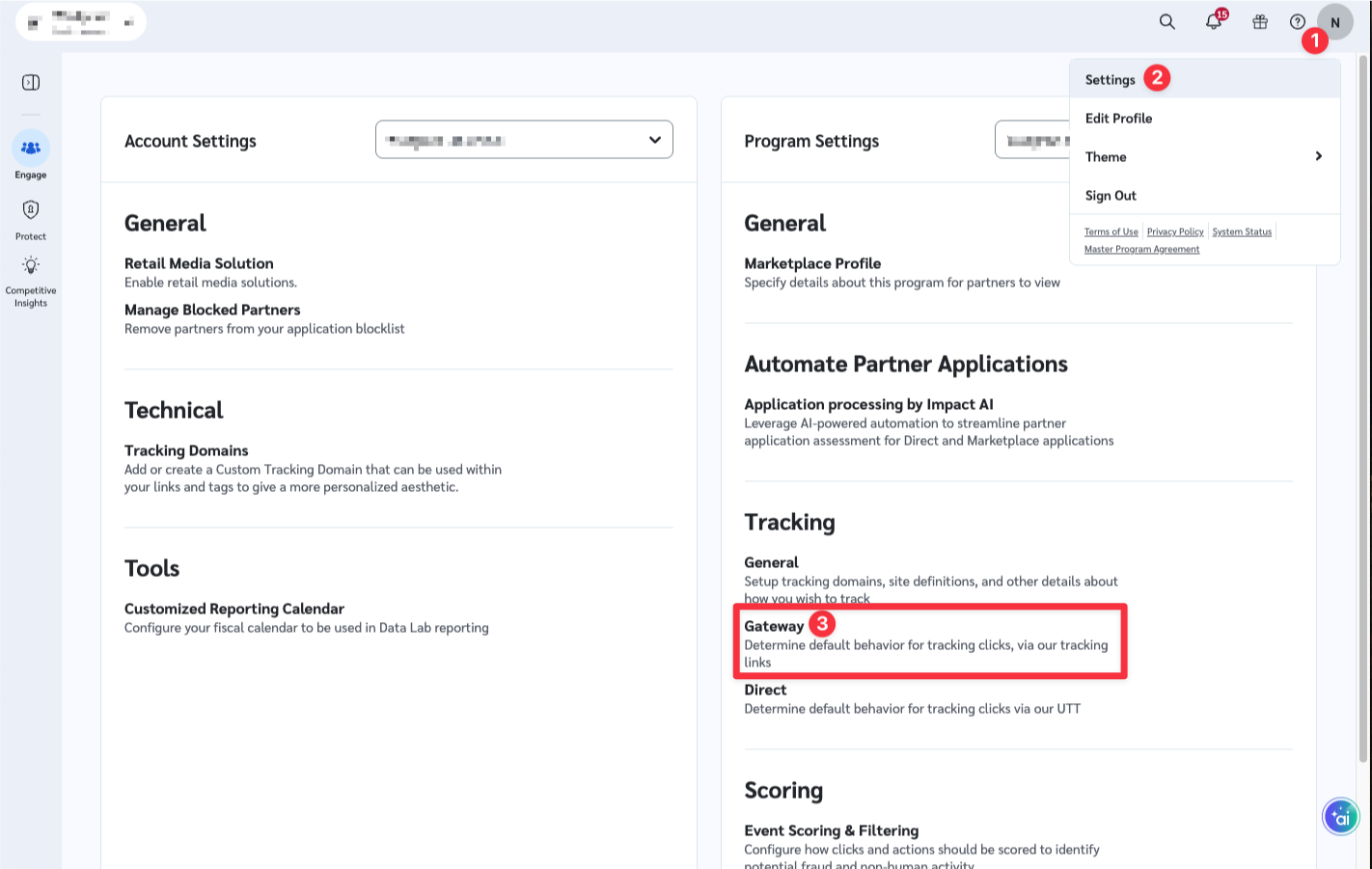

Impact Settings menu with Gateway selected

Settings > Gateway

If you skip this step: Northbeam can’t tie visits and orders to your Impact ads, so spend and revenue show up on separate lines.
3

Confirm tracking

If a check fails, see Troubleshooting Northbeam data.

How Impact data maps to Northbeam

Impact data follows Impact’s own hierarchy: programs (campaigns) contain partners, and partners use individual ads.

Remove Impact custom spend (optional)

Once connected, Northbeam pulls up to 3 years of historical spend from Impact. If you already send Impact spend through a Spend Sheet or the Spend API, remove the overlap so it isn’t reported twice. For example, if you connect on 5/10/26, Northbeam backfills Impact spend to 5/10/23. If you have Impact spend older than that window and want to keep it, leave those older records in place. From a Spend Sheet
  1. Go to Settings > Data Spreadsheets.
  2. Find the sheet tied to Impact.
  3. Zero out the Impact spend that overlaps the backfill period. For example, if you connect on 5/10/26, zero out Impact spend from 5/10/23 onward.
Don’t delete rows, columns, or cells from the Spend Sheet. Replace the overlapping Impact spend values with 0 instead. Custom spend sheets vary: some use formulas tied to raw data import tabs, others use manually entered spend.
From the Spend API Delete the existing Impact spend records with the Delete Spend endpoint. If you’re not sure which values to remove, submit a support ticket and we’ll help.
